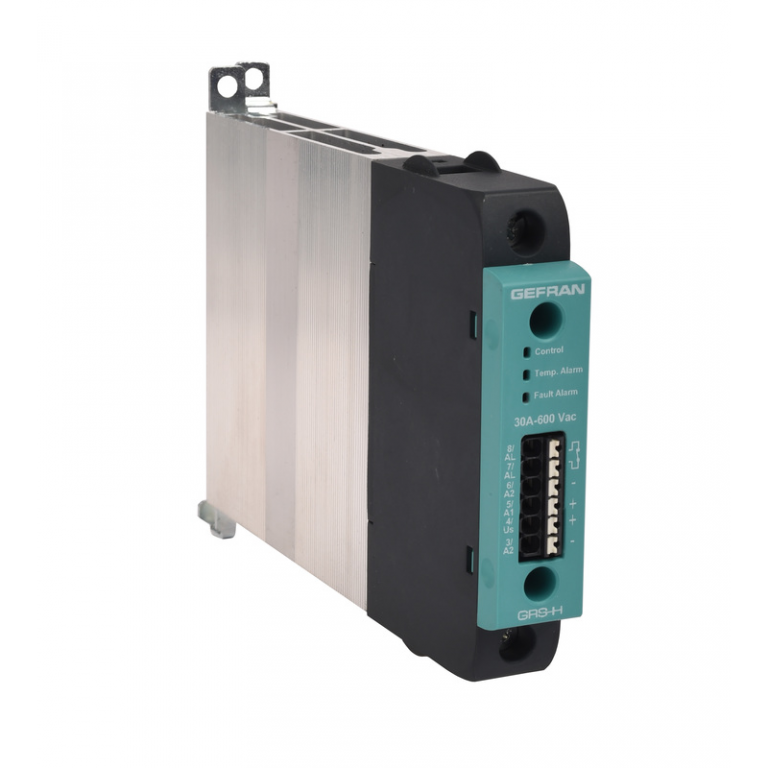

F083576 GRS-H-60-60-D-0-0-0-0 – Relay bán dẫn – Gefran Vietnam – STC Vietnam
Xuất sứ: italy
Nhà cung cấp: STC Vietnam
Hãng sản xuất: Gefran Vietnam
Thông báo Thay thế dòng sản phẩm GS – GTS Gefran
Ra mắt dòng sản phẩm Relay bán dẫn và dòng contactor bán dẫn GRS và GRS-H vào tháng 9/ 2020, chúng thôi thông báo dòng sản phẩm Relay GS và GTS Gefran sẽ ngưng sản xuất và chỉ nhận đơn cho đến ngày 31/3/2021.
Từ ngày 1/4/2021, chúng thôi không nhận bất kì đặt hàng nào liên quan đến dòng GS/ GTS.
Dưới đây là hình ảnh kích thước và lợi ích kết nối của dòng Relay GRS – H so với dòng Relay GTS và chúng tôi sẽ cung cấp bảng chuyển đổi qua lại GTS và GRS-H.
GTS & GRS-H Cross Reference
GTS GRS-H
SAP Code Description SAP Code Description
F061593 GTS-15/24-A-0 (230V/15A) F083590 GRS-H-15-48-A-0-0-0-0
F000116 GTS-15/24-D-0 (230V/15A) F083570 GRS-H-15-48-D-0-0-0-0
F060683 GTS-15/48-A-0 (480V/15A) F083590 GRS-H-15-48-A-0-0-0-0
F000117 GTS-15/48-D-0 (480V/15A) F083570 GRS-H-15-48-D-0-0-0-0
F061595 GTS-15/60-A-0 (600V/15A) F083588 GRS-H-15-60-A-0-0-0-0
F061582 GTS-15/60-D-0 (600V/15A) F083571 GRS-H-15-60-D-0-0-0-0
F061596 GTS-25/24-A-0 (230V/25A) F083589 GRS-H-25-48-A-0-0-0-0
F000120 GTS-25/24-D-0 (230V/25A) F082630 GRS-H-25-48-D-0-0-0-0
F061336 GTS-25/48-A-0 (480V/25A) F083589 GRS-H-25-48-A-0-0-0-0
F000121 GTS-25/48-D-0 (480V/25A) F082630 GRS-H-25-48-D-0-0-0-0
F061343 GTS-25/60-A-0 (600V/25A) F083591 GRS-H-25-60-A-0-0-0-0
F061583 GTS-25/60-D-0 (600V/25A) F082819 GRS-H-25-60-D-0-0-0-0
F061599 GTS-40/24-A-0 (230V/40A) F083593 GRS-H-40-48-A-0-0-0-0
F000124 GTS-40/24-D-0 (230V/40A) F082814 GRS-H-40-48-D-0-0-0-0
F060684 GTS-40/48-A-0 (480V/40A) F083593 GRS-H-40-48-A-0-0-0-0
F000125 GTS-40/48-D-0 (480V/40A) F082814 GRS-H-40-48-D-0-0-0-0
F060685 GTS-40/60-A-0 (600V/40A) F083594 GRS-H-40-60-A-0-0-0-0
F061584 GTS-40/60-D-0 (600V/40A) F083574 GRS-H-40-60-D-0-0-0-0
F061602 GTS-50/24-A-0 (230V/50A) F083595 GRS-H-50-48-A-0-0-0-0
F023535 GTS-50/24-D-0 (230V/50A) F082815 GRS-H-50-48-D-0-0-0-0
F060686 GTS-50/48-A-0 (480V/50A) F083595 GRS-H-50-48-A-0-0-0-0
F000127 GTS-50/48-D-0 (480V/50A) F082815 GRS-H-50-48-D-0-0-0-0
F062776 GTS-50/48-D-1 (480V/50A) F084176 GRS-H-50-48-D-1-0-0-0
F060688 GTS-50/48-D-2 (480V/50A) F084177 GRS-H-50-48-D-2-0-0-0
F075616 GTS-50/48-D-3 (480V/50A) F084178 GRS-H-50-48-D-3-0-0-0
F060689 GTS-50/48-D-4 (480V/50A) F084179 GRS-H-50-48-D-5-0-0-0
F060687 GTS-50/60-A-0 (600V/50A) F083596 GRS-H-50-60-A-0-0-0-0
F061605 GTS-50/60-A-1 (600V/50A) not available
F061342 GTS-50/60-D-0 (600V/50A) F083575 GRS-H-50-60-D-0-0-0-0
GTS & GRS-H Cross Reference
31 UBI ROAD 1
#02-07 AZTECH BUILDING
SINGAPORE 408694
GTS GRS-H
SAP Code Description SAP Code Description
F061606 GTS-60/24-A-0 (230V/60A) F083597 GRS-H-60-48-A-0-0-0-0
F023536 GTS-60/24-D-0 (230V/60A) F082816 GRS-H-60-48-D-0-0-0-0
F071079 GTS-60/24-D-4 (230V/60A) F084185 GRS-H-60-48-D-5-0-0-0
F061337 GTS-60/48-A-0 (480V/60A) F083597 GRS-H-60-48-A-0-0-0-0
F000129 GTS-60/48-D-0 (480V/60A) F082816 GRS-H-60-48-D-0-0-0-0
F062793 GTS-60/48-D-1 (480V/60A) F084183 GRS-H-60-48-D-1-0-0-0
F071431 GTS-60/48-D-2 (480V/60A) F083727 GRS-H-60-48-D-2-0-0-0
F061344 GTS-60/60-A-0 (600V/60A) F083598 GRS-H-60-60-A-0-0-0-0
F061609 GTS-60/60-A-1 (600V/60A) not available
F061587 GTS-60/60-D-0 (600V/60A) F083576 GRS-H-60-60-D-0-0-0-0
F061588 GTS-60/60-D-2 (600V/60A) F084187 GRS-H-60-60-D-2-0-0-0
F061610 GTS-75/24-A-0 (230V/75A) F083599 GRS-H-75-48-A-0-0-0-0
F023537 GTS-75/24-D-0 (230V/75A) F083577 GRS-H-75-48-D-0-0-0-0
F061338 GTS-75/48-A-0 (480V/75A) F083599 GRS-H-75-48-A-0-0-0-0
F023538 GTS-75/48-D-0 (480V/75A) F083577 GRS-H-75-48-D-0-0-0-0
F067674 GTS-75/48-D-1 (480V/75A) F084189 GRS-H-75-48-D-1-0-0-0
F068352 GTS-75/48-D-2 (480V/75A) F084190 GRS-H-75-48-D-2-0-0-0
F075395 GTS-75/48-D-3 (480V/75A) F084191 GRS-H-75-48-D-3-0-0-0
F061612 GTS-75/60-A-0 (600V/75A) F083600 GRS-H-75-60-A-0-0-0-0
F061613 GTS-75/60-A-1 (600V/75A) not available
F061589 GTS-75/60-D-0 (600V/75A) F083578 GRS-H-75-60-D-0-0-0-0
F061590 GTS-75/60-D-2 (600V/75A) F082838 GRS-H-75-60-D-2-0-0-0
F061614 GTS-90/24-A-0 (230V/90A) F083601 GRS-H-90-48-A-0-FAN60-0-0
F023539 GTS-90/24-D-0 (230V/90A) F082817 GRS-H-90-48-D-0-FAN60-0-0
F061339 GTS-90/48-A-0 (480V/90A) F083601 GRS-H-90-48-A-0-FAN60-0-0
F066271 GTS-90/48-A-1 (480V/90A) not available
F000131 GTS-90/48-D-0 (480V/90A) F082817 GRS-H-90-48-D-0-FAN60-0-0
F064534 GTS-90/48-D-1 (480V/90A) F084196 GRS-H-90-48-D-1-FAN60-0-0
F062300 GTS-90/48-D-2 (480V/90A) F084197 GRS-H-90-48-D-2-FAN60-0-0
F061616 GTS-90/60-A-0 (600V/90A) F083604 GRS-H-90-60-A-0-FAN60-0-0
F061617 GTS-90/60-A-1 (600V/90A) not available
F061592 GTS-90/60-D-0 (600V/90A) F083579 GRS-H-90-60-D-0-FAN60-0-0
GTS & GRS-H Cross Reference
Description SAP Code Description
F061619 GTS-120/24-A-0-VEN90 (230V/120A) F083607 GRS-H-120-48-A-0-FAN60-0-0
F061618 GTS-120/24-A-0-VEN91 (230V/120A) F083608 GRS-H-120-48-A-0-FAN61-0-0
F023541 GTS-120/24-D-0-VEN90 (230V/120A) F083582 GRS-H-120-48-D-0-FAN60-0-0
F023540 GTS-120/24-D-0-VEN91 (230V/120A) F083583 GRS-H-120-48-D-0-FAN61-0-0
F023542 GTS-120/24-D-0-VEN92 (230V/120A) F083584 GRS-H-120-48-D-0-FAN62-0-0
F066885 GTS-120/24-D-1-VEN90 (230V/120A) F084225 GRS-H-120-48-D-1-FAN60-0-0
F061340 GTS-120/48-A-0-VEN90 (480V/120A) F083607 GRS-H-120-48-A-0-FAN60-0-0
F061341 GTS-120/48-A-0-VEN91 (480V/120A) F083608 GRS-H-120-48-A-0-FAN61-0-0
F069321 GTS-120/48-A-1-VEN90 (480V/120A) not available
F000135 GTS-120/48-D-0-VEN90 (480V/120A) F083582 GRS-H-120-48-D-0-FAN60-0-0
F000133 GTS-120/48-D-0-VEN91 (480V/120A) F083583 GRS-H-120-48-D-0-FAN61-0-0
F022825 GTS-120/48-D-0-VEN92 (480V/120A) F083584 GRS-H-120-48-D-0-FAN62-0-0
F068759 GTS-120/48-D-1-VEN90 (480V/120A) F084225 GRS-H-120-48-D-1-FAN60-0-0
F069616 GTS-120/48-D-1-VEN91 (480V/120A) F084228 GRS-H-120-48-D-1-FAN61-0-0
F070119 GTS-120/48-D-1-VEN92 (480V/120A) F084232 GRS-H-120-48-D-1-FAN62-0-0
F064131 GTS-120/48-D-2-VEN90 (480V/120A) F083129 GRS-H-120-48-D-2-FAN60-0-0
F062230 GTS-120/48-D-2-VEN92 (480V/120A) F084233 GRS-H-120-48-D-2-FAN62-0-0
F075396 GTS-120/48-D-3-VEN90 (480V/120A) F084226 GRS-H-120-48-D-3-FAN60-0-0
F061628 GTS-120/60-A-0-VEN90 (600V/120A) F083610 GRS-H-120-60-A-0-FAN60-0-0
F061626 GTS-120/60-A-0-VEN91 (600V/120A) F083611 GRS-H-120-60-A-0-FAN61-0-0
F061629 GTS-120/60-A-1-VEN90 (600V/120A) not available
F061627 GTS-120/60-A-1-VEN91 (600V/120A) not available
F061622 GTS-120/60-D-0-VEN90 (600V/120A) F083585 GRS-H-120-60-D-0-FAN60-0-0
F061620 GTS-120/60-D-0-VEN91 (600V/120A) F083586 GRS-H-120-60-D-0-FAN61-0-0
F069406 GTS-120/60-D-1-VEN91 (600V/120A) F084242 GRS-H-120-60-D-1-FAN61-0-0
F067057 GTS-120/60-D-3-VEN92 (600V/120A) F084248 GRS-H-120-60-D-3-FAN62-0-0
======================================================
Xem thêm F083576 GRS-H-60-60-D-0-0-0-0 – Relay bán dẫn – Gefran Vietnam
======================================================
STC là đại lý chính hãng Gefran tại Việt Nam cung cấp sản phẩm chính hãng F083576 GRS-H-60-60-D-0-0-0-0 – Relay bán dẫn – Gefran Vietnam. Một số mã chúng tôi có sẵn kho. Vui lòng liên hệ ngay để nhận được giá tốt nhất.
Công ty TNHH DV TM Song Thành Công – STC – đem lại các giải pháp tối ưu tự đống hóa cho ngành công nghiệp.
Hãy liên hệ với chúng tôi để nhận được hỗ trợ tốt nhất từ đội ngũ STC chuyên nghiệp.
Sẵn giá – Báo ngay – Bảo hành 12 tháng – Tư vấn, lắp đặt 24/7
